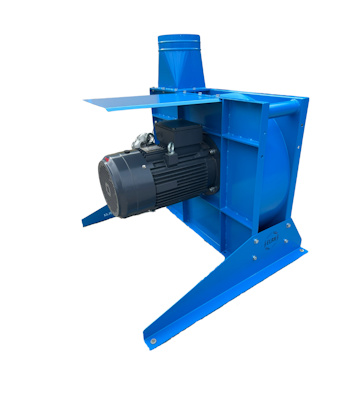

Technická specifikace ventilátoru
| typ | motor | množství vzduchu | tlak | otáčky | A | B | C | DN |
|---|---|---|---|---|---|---|---|---|
| kW | m3/hod | Pa | ot./min | mm | mm | mm | mm | |
| VSM-031-0140-K | 1,5 | 1340 | 2250 | 2840 | 691 | 596 | 371 | 140 |
| VSM-028-0140-K | 4 | 1340 | 2400 | 2850 | 738 | 672 | 402 | 140 |
| VSM-035-0160-K | 2,2 | 1730 | 2100 | 2820 | 716 | 636 | 406 | 160 |
| VSM-031-0160-K | 3 | 1730 | 2800 | 2850 | 760 | 696 | 430 | 160 |
| VSM-028-0160-K | 4 | 1730 | 4000 | 2880 | 841 | 764 | 457 | 160 |
| VSM-040-0180-K | 3 | 2200 | 2300 | 2850 | 726 | 621 | 456 | 180 |
| VSM-035-0180-K | 4 | 2200 | 3600 | 2880 | 799 | 690 | 483 | 180 |
| VSM-031-0180-K | 5,5 | 2200 | 4300 | 2880 | 858 | 765 | 583 | 180 |
| VSM-031-0180-K | 7,5 | 2200 | 5300 | 2880 | 858 | 765 | 583 | 180 |
| VSM-045-0200-K | 3 | 2700 | 2200 | 2850 | 756 | 646 | 476 | 200 |
| VSM-040-0200-K | 5,5 | 2700 | 2700 | 2860 | 815 | 716 | 582 | 200 |
| VSM-035-0200-K | 7,5 | 2700 | 4300 | 2880 | 872 | 762 | 602 | 200 |
| VSM-031-0200-K | 11 | 2700 | 5500 | 2900 | 954 | 833 | 652 | 200 |
| VSM-050-0220-K | 4 | 3300 | 2350 | 2880 | 786 | 666 | 522 | 220 |
| VSM-045-0220-K | 5,5 | 3300 | 3300 | 2860 | 862 | 744 | 602 | 220 |
| VSM-040-0220-K | 7,5 | 3300 | 3800 | 2880 | 786 | 666 | 522 | 220 |
| VSM-035-0220-K | 11 | 3300 | 5100 | 2880 | 977 | 852 | 602 | 220 |
| VSM-056-0250-K | 5,5 | 4230 | 2500 | 2860 | 816 | 676 | 622 | 250 |
| VSM-050-0250-K | 7,5 | 4230 | 2800 | 2880 | 872 | 734 | 642 | 250 |
| VSM-045-0250-K | 11 | 4230 | 4800 | 2900 | 932 | 797 | 692 | 250 |
| VSM-040-0250-K | 15 | 4230 | 5500 | 2920 | 985 | 851 | 704 | 250 |
| VSM-071-0300-K | 7,5 | 6100 | 2300 | 2880 | 871 | 716 | 692 | 300 |
| VSM-063-0300-K | 11 | 6100 | 3300 | 2900 | 942 | 784 | 742 | 300 |
| VSM-056-0300-K | 15 | 6100 | 4250 | 2920 | 1000 | 838 | 754 | 300 |
| VSM-050-0300-K | 18,5 | 6100 | 5200 | 2920 | 1067 | 906 | 792 | 300 |
| VSM-080-0350-K | 7,5 | 8350 | 2200 | 2900 | 869 | 722 | 772 | 350 |
| VSM-071-0350-K | 11 | 8350 | 2800 | 2900 | 992 | 812 | 772 | 350 |
| VSM-063-0350-K | 15 | 8350 | 3100 | 2920 | 1060 | 876 | 784 | 350 |
| VSM-056-0350-K | 18,5 | 8350 | 5100 | 2900 | 1138 | 967 | 784 | 350 |
| VSM-071-0400-K | 11 | 10900 | 2500 | 2900 | 1046 | 872 | 820 | 400 |
| VSM-071-0400-K | 15 | 10900 | 2800 | 2920 | 1046 | 872 | 858 | 400 |
| VSM-071-0400-K | 18,5 | 10900 | 3600 | 2900 | 1046 | 872 | 858 | 400 |
